Prestressed Concrete Steel Wire

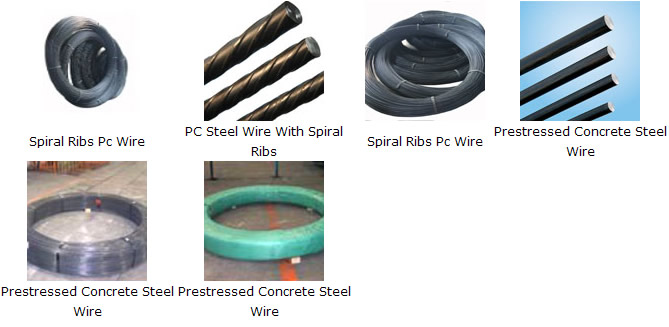

We have three types of PC wire including plain surface, spiral ribs pc wire and indented pc wire.PC Wire and PC Strand have a wide range of use, such as bridges, subway, railway sleepers, poles, dams, nuclear power plants, high-rise buildings and houses, etc.
Active standard: GB/T5223, ASTMA421, BS5896, JISG3536, ISO6934, EN10138 or other special required standards
Helical Rib PC strand appearance of the main characteristics are rolling pull-out process will deal with semi-finished products after the plastic deformation after the last drawing, so that wire formed on the surface of four consecutive convex-shaped rib, whether appearance or material processing method is excellent features to plain steel wire and strand.
The character of the spiral ribs wire is there are 3-6 protruding ribs on the surface, and the advantage is that it can strengthen the bond between wire and concrete, thus improves the performance of the PC products and extends its life.
★ Smooth Pc Wire(Hard Drawn And PC Smooth Steel)
| Nominal diameter (mm) |
Tolerance (mm) |
Tensile strength No less than (MPa) |
Off-proportion extension stress no less than (kN) |
Elongation no less than L0=200mm (%) |
Bending test | Relaxation value 1000h no more than | ||
| Times/ 180° No less than |
radius (mm) |
Ⅰ | Ⅱ | |||||
| 5.00 | ±0.05 | 1470 1570 1670 1770 |
1250 1330 1410 1500 |
4 | 4 | 15 | 8 | 2.5 |
6.00 |
±0.05 | 1570 1670 |
1330 1420 |
4 | 4 | 15 | 8 | 2.5 |
| 7.00 | ±0.05 | 1470 1570 |
1250 1330 |
4 | 4 | 20 | 8 | 2.5 |
★ Indented Pc Wire
| Nominal diameter (mm) |
Tensile strength No less Than (MPa) |
Off-proportion extension stress no less than (kN) |
Elongation no less than L0=200mm (%) |
Bending test | Relaxation Value 1000h no more than |
||
| Times/ 180° No less than |
radius (mm) |
Ⅰ | Ⅱ | ||||
| ≤5.00 |
1470 1570 |
1250 1330 |
3.5 | 3 | 15 | 8 | 2.5 |
| >5.00 |
1470 1570 |
1250 1340 |
20 | ||||
★ Spiral Ribs Pc Wire(Sides Scratch Wire)
| Nominal Dia. (mm) |
Spiral ribs number （Item） |
Spiral ribs nominal size |
Retortion time （>=） |
|||
| Dia of base circle （D1） (mm) |
Dia of out profile （D） (mm) |
Single rib size |
Spiral rib length perimeter （C） mm/360° |
|||
| Width （a） (mm) |
Height （b） (mm) |
|||||
| 4.00 |
4 | 3.85±0.05 |
4.25±0.05 |
0.90-1.30 |
0.20±0.05 |
24.00-30.00 |
| 4.80 |
4 | 4.60±0.05 |
5.10±0.05 |
1.30-1.70 |
0.25±0.05 |
28.00-36.00 |
| 5.00 |
4 | 4.80±0.05 |
5.30±0.05 |
1.30-1.70 |
0.25±0.05 |
28.00-36.00 |
| 6.00 | 4 | 5.80±0.05 |
6.30±0.05 |
1.60-2.00 |
0.35±0.05 |
30.00-38.00 |
| 7.00 | 4 | 6.70±0.05 |
7.46±0.10 |
1.80-2.20 |
0.40±0.05 |
35.00-45.00 |
8.00 |
4 | 7.70±0.05 |
8.45±0.10 |
2.00-2.40 |
0.45±0.05 |
40.00-50.00 |
